Part 8: MECHANISM

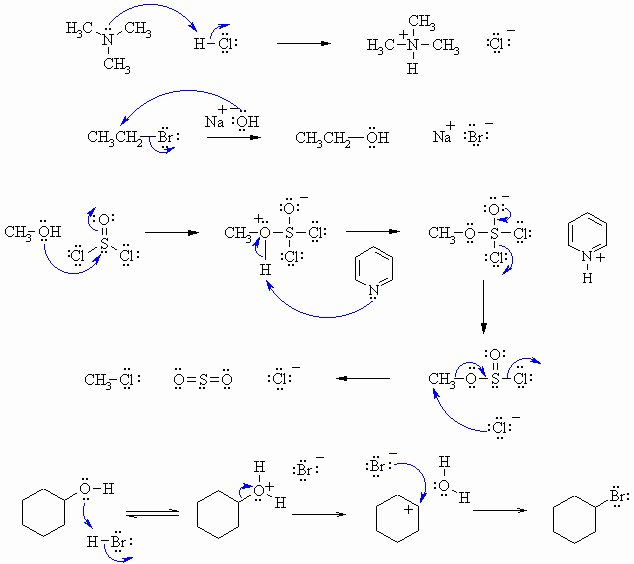

The following diagram show the answers to the mechanistic questions. Note how the curly arrows are drawn specifically to lead from one structure to the next in the sequence for each question. Also check to see how the arrows show how the electrons move to account for all the bonding changes that occur. There was no need to add extra bonds or compounds to complete the sequences. Remember to balance your charges !

mechanism
