 Useful Concepts Index of Hydrogen Deficiency (IHD)

The Index of Hydrogen Deficiency (or IHD) is also known as "units of unsaturation" and several other similar names.

The index of hydrogen deficiency is a count of how many molecules of H2 need to be added to a structure in order to obtain the corresponding saturated, acyclic species.   Hence, the IHD takes a count of how many rings and multiple bonds are present in the structure, so the IHD can also be thought of as (multiple bonds + rings) or

IHD = π + r

Note that the IHD for neutral organic molecules MUST be a positive integer (i.e. 0, 1, 2 etc.). If you calculate something different (e.g. 1.5 then there is an error!)

There are two ways in which the IHD can be applied, and both can be useful depending up on the situation (a good student will be comfortable with both):

(1) From a drawn structure

When you look at a drawn structure, count the number of π bonds and rings present (i.e. π + r) (but take care not to count any rings twice !).

When counting π bonds, π bonds containing heteroatoms (e.g. O, N etc.) can be counted in exactly the same way as C π bonds.

• Each double bond has 1 π bond and therefore counts 1, each triple bond has 2 π bonds and counts 2

For simple ring systems this can be straight forward, but not as obvious for more complex ring systems.

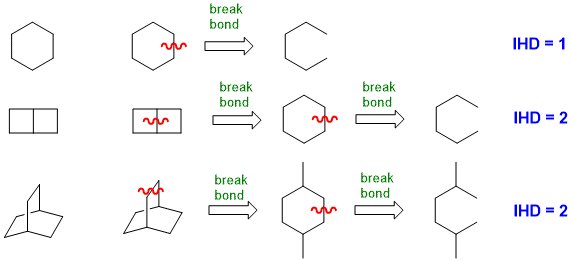

• Count the number of bonds you need to "break" to make an acyclic (i.e. chain) structure: (2) From the molecular formula

The IHD can be calculated directly from a molecular formula. Consider the following generic molecular formula CcHhNnOoXx, then the following equation can be derived:

IHD = 0.5 * [2c+2-h-x+n]

Where does this equation come from ?

• Well, the maximum number of hydrogen atoms for "c" carbon atoms is 2c+2 (think of the formulae of saturated hydrocarbons such as ethane, propane etc).
• From this number, subtract the "h" hydrogen atoms that you have.
• Since, like hydrogen, a halogen atom only forms one bond, then they can be treated as if they are hydrogens, so subtract them as well.
• Oxygen forms two bonds, therefore it has no impact (compare H atom count for methane, CH4, and methanol, CH3OH : both have 4 H).
• Nitrogen forms three bonds. This means each nitrogen atom in a molecule, an extra H atom is needed (compare the H count for methane, CH4, and methyl amine, CH3NH2), therefore, for "n" nitrogen atoms present, add "n".
• The factor of 0.5 accounts for us counting H atoms, but adding hydrogen, H2 , molecules (because breaking one bond leaves two ends to be filled).

OK ?

Study Tip:
Make sure you can do it both ways!
With a more complex structure, counting C and H atoms to go from a drawing to a molecular formula risks making an error.
With a larger molecular formula, creating a drawing that you know fits the MF risks making an error.

Try the example below ! C27H46O

Determining the IHD for molecules can be useful for the following reasons:

• Seeing what types of structural units are possible
• Quickly checking structures to see if they fit the molecular formula rather than simply counting H (when a mistake is possible)
QUESTIONS : What is the IHD of each of the following molecular formulae ? © Dr. Ian Hunt, Department of Chemistry
