Interpretting C-NMR Spectra
The following information is to be gained from a typical  broadband decoupled 13C-NMR spectrum:

How many types of C ? Indicated by how many signals there are in the spectra
What types of C ?  Indicated by the chemical shift of each signal

Here are some examples of 13C-NMR spectra.

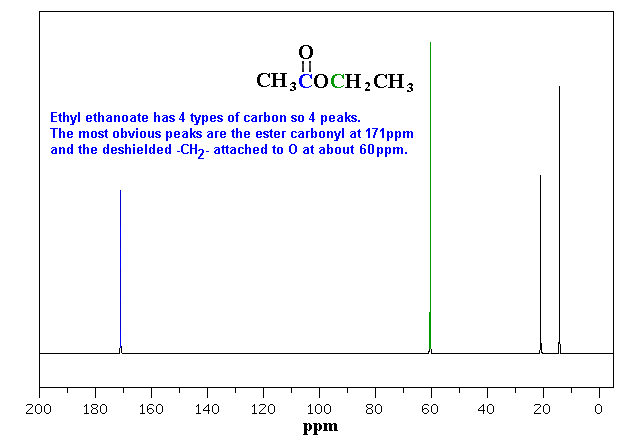

13C-NMR of ethyl ethanoate (broadband decoupled)

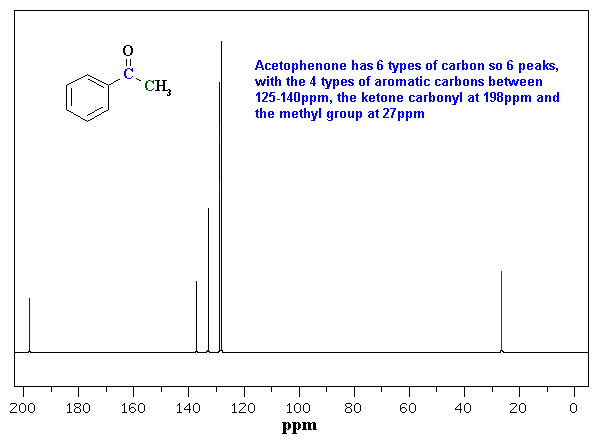

13C-NMR of acetophenone (broadband decoupled)
